Question: How can I replace or repair a board in an Airmate?
Answer: Link: please read the info at this link
Under construction!
What tools do I need to work on an Airmate
A plastic spoon to lift the potentiometer knobs.
The plastic prevents scratching the front.
A Torx 10 (*) screw driver.
For older units we used cross slot screws (+) Philips 1 and Pozidriv 1.
Combination pliers with the edges taped in a few layers of painting tape to prevent for scratching.
Wooden beams to create a distance when the mixer is placed upside down.
To prevent for scratching you can add foam or cloth.
A multimeter and some skills to use it.
How to open an Airmate in the right order
To open an Airmate follow the next steps carefully.
Be sure that the unit is unplugged from the power source!

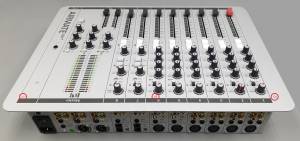

Remove the three screws in at the bottom row.

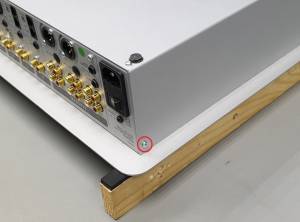

Remove the screw on the Left side.
Remove the screw on the Right side.
Remove the three screws on the bottom side.

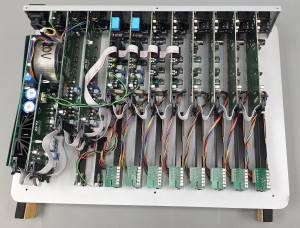

Now the bottom housing can be lift off.
In a lot of cases it is possible to locate problems without disassembly of the P.C.B. and back metal.
Faders can be replaced without further dissasambly except the 2 screws that hold the fader in de front.
Be sure to use the same screws as longer screws can lock up the fader travel.
To remove or replace a print circuit board from the Airmate

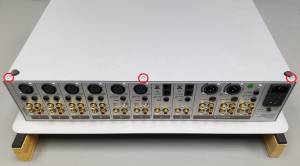

Remove the 3 screws at the top side.

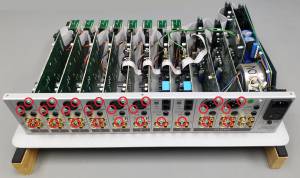

Remove the screws that hold the connectors.
The small connector board on the right can remain assembled.
.
Where can I measure the Power supply
