On Air light

Model: Production year
On Air light -
Brochure Manual -


Question: How do I connect the wires inside of my On Air light?

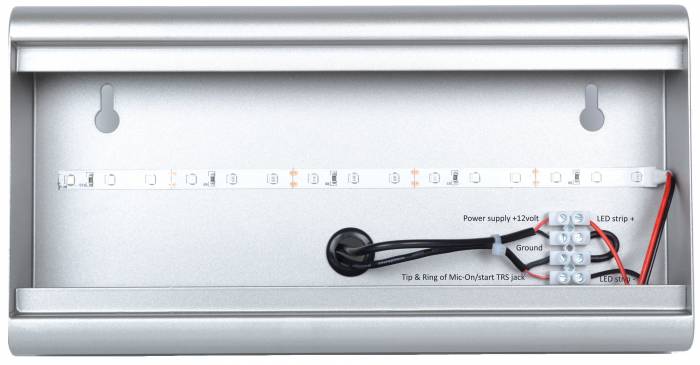

Answer: Follow the wires on this picture (Click to enlarge!) to see how you need to connect the On Air Light:


Question: How do I connect my On Air light to a selection or multiple channels on my mixer?

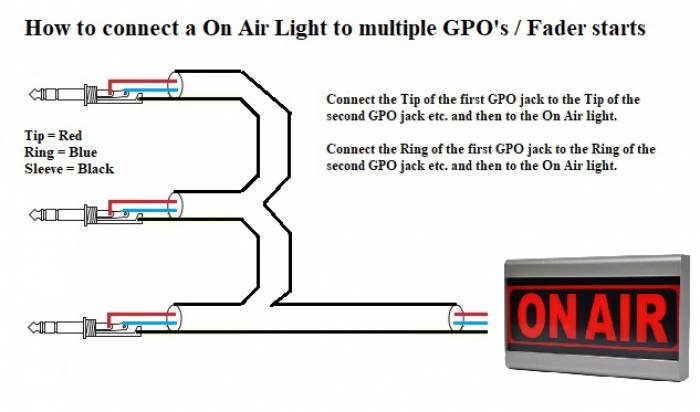

Answer: Follow the wires on this picture (Click to enlarge!) to see how to connect to multiple channels:


Question: How do I connect a On Air light 1 to my Airence?
Answer: Follow the instructions in this .pdf document: How to connect a On Air light


Question: How do I connect a On Air light 1 to my Airlab?
Answer: Follow the instructions in this .pdf document: How to connect a On Air light


Question: How do I connect a On Air light 1 to my Airlite?
Answer: Follow the instructions in this .pdf document: How to connect a On Air light


Question: How do I connect a On Air light 1 to my Airmate?
Answer: Be sure to activate the CRM Mute (Self Op) function to activate the On Air light when you move up the fader!
Answer: Follow the instructions in this .pdf document: How to connect a On Air light
