Axum and Axite support page


Model: Production year
Axum / Axite -
Axum Brochure Axum Manual -
Axite Brochure Axite Manual -


URGENT : DOWNLOAD a BACKUP of your RACK CONFIGURATION on a regular basis

Users that have higher capacity Compact flash cards can experience error messages when trying to download the backup.
Don't click away the error message, browse to the download directory and rename the partial file to .raw.


Needed software (Install as Administrator):

Software Windows MAC OS X Manual Info
Axum Remote App 2012 Ask D&R Sales department... - PDF -
AES67/USB Card Windows Driver Signed link - - -
AES67/USB Card Windows Driver Unsigned link - - -
Axum Firewire Driver v4.1.4 link - - -





FAQ - Axite and Axum


Default Configuration


Question: How do I connect my Axum or Axite system?
Answer:
Click to enlarge!

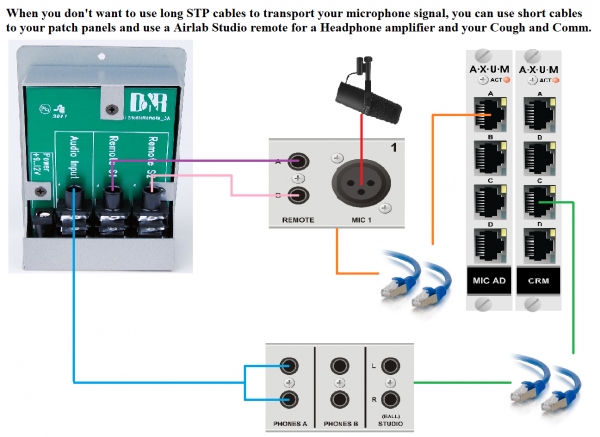

Question: I don't want to use long STP cables for my Microphone signal, how can I still use the Cough and Comm functions?
Answer:
Click to enlarge!


Question: Do you have instructions how to configure an Axum/Axite from scratch?
Answer: Link : AXUM default configuration


Question: How can I make a backup and restore a backup of the Compact flashcard?
Answer: Link: follow the instructions on this page.


Question: Is it possiple to change the Icons on the meter display?
Answer: Link: Follow these instructions
Answer: Link: Original Icons can be downloaded in this package


Question: What to do when the Axum meters show 99% and the engine?
Answer: Link: Instruction document


Question: Is it possible to let your PC work in 2 different network ranges?
Answer: Yes, this can be usefull when you need to configure your Axite / Axum system if it is configured in a different network range.
This can be done as showed in the next image:


Question: Which switch number is linked to which physical switch on the surface?
Axum: Axite:
Click to enlarge! Click to enlarge!




(Re)place a card

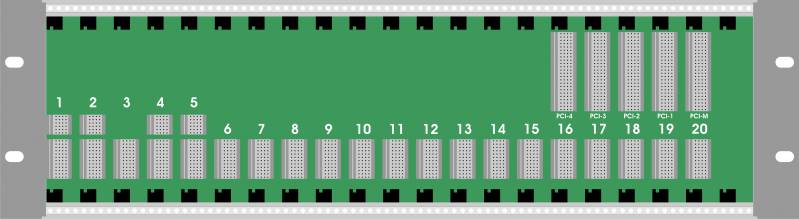

When placing a card in the Axum/Axite rack the card order is important for some cards !!!



Rack Power Supplies can be placed at Slot 1, 2, 4 or 5 (Double rack also the first positions with the extra connector)
The Rack ETX (Engine) has to be at Slot 20
The first DSP card has to be at Slot 16
A optional second DSP card has to be at Slot 17, thirth at Slot 18 and fourth at Slot 19
An Dante, AES67/USB or Firewire card has to be placed in a free Slot 17, 18 or 19

Other cards can be placed at random order in the other Slots.

Systems delivered after 05 May 2021 have a hardware firmware update which makes it possible to also place Dante, AES67/USB or Firewire cards at slot 12, 13, 14, 15. This update also makes it possible to use 32x mono in and 32x mono out for the Dante card.


Question: How can I transfer settings of an old card to a new one?
Question: How can I refresh the settings of an existing card or delete a removed or unused card/node?
Answer: Link: follow the instructions on this page.


Question: How do I configure the AES67 / USB card?
Answer: Link: follow the instructions on this page.







Studio remote and GPI, GPO settings


Question: How can I configure my Studio Remotes in the Axum?
Answer: Link: follow the instructions on this page.


Question: I want to connect my Fader start to my CD player, Turntable or other player, how do I have to connect this?
Answer: Instructions can be found in this webpage: Fader start instructions




Settings and functions


Question: How can I configure my Axum to control Aircast?
Answer: Link: follow the instructions on this page


Question: How can I move the Motorfaders by pressing a button?
Answer: Link: follow the instructions on this page


Question: How can I add the Source gain function to other cards then the MicAD card?
Answer: Link:: follow the instructions on this page.


Question: How can I add the Destination gain function to an output card?
Answer: Link:: follow the instructions on this page.


Question: How can I change the color of the LED's in the switches?
Answer: Link:: follow the instructions on this page.


Question: How can I configure an insert function?
Answer: Link:: follow the instructions on this page.


Question: How can I configure an aux function?
Answer: Link:: follow the instructions on this page.


Question: How can I configure a headphone Split function?
Answer: Link:: follow the instructions on this page.




User levels


Question: How can I configure User Levels in the Axum?
Answer: Link: follow the instructions on this page.




AES 67 and USB card


Question: Is the AES67/USB card able to communicate with Dante?
Answer: Link: http://www.mambanet.org/wiki/dokudata/faq/axum/AES 67 Dante.pdf


Question: How do I configure the AES67 / USB card?
Answer: Link: follow the instructions on this page.




Service and Repair


Question: What are the differences in versions?
Answer: Link: please read the info at this link


Question: My Axum doesn't seem to boot, voltages aren't right, how do I adjust the Power Supply?
Answer: Link: Follow the instructions on this page.




Instruction videos

Title uk_flag1.jpg dutch_flag1.jpg
0 - Introduction EN NL
1 - IP Clock EN NL
2 - Global Configuration EN NL
3 - Mix Buss Configuration EN NL
4 - Monitor Buss Configuration EN NL
5 - Source Configuration EN NL
6 - Extern Configuration EN NL
7 - Destination Configuration EN NL
8 - Talkback Configuration EN NL
9 - Processing EN NL
10 - Module Assignment EN NL
11 - Module Configuration EN NL
12 - Mix Monitor Buss Presets EN NL
13 - Console Presets EN NL
14 - Surface Configuration (Part 1) EN NL
14 - Surface Configuration (Part 2) EN NL
14 - Surface Configuration (Part 3) EN NL
15 - Rack Configuration (Part 1) EN NL
15 - Rack Configuration (Part 2) EN NL
16 - Source Pools EN NL
17 - Processing Presets EN NL
18 - Users (Part 1) EN NL
18 - Users (Part 2) EN NL
19 - System Configuration EN NL
EXTRA - Source Hybrid Configuration EN NL
EXTRA - Studio NonStop with OnAir Buss EN NL
EXTRA - Source GPO Configuration EN NL
EXTRA - Switch Function Configuration EN NL
EXTRA - Change label in button of CRM Panel
EXTRA - Change label in button of Fader Panel
